HONDA
Powered Pumps

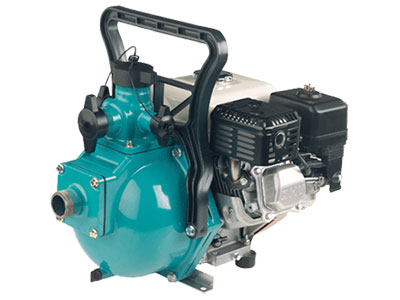

Model B55H 1.5" High Pressure
Honda's High Pressure Fire Fighting Pumps are a reliable and trusted brand of fire fighting equipment. Designed to pump water higher and further to fight fires from a safe distance.
The B55 1.5" is strong and durable manufactured with lightweight high grade corrosion resistant materials. With a large pump casing with raised suction port and inbuilt non-return valve for better priming capabilities. It features Computational Fluid Dynamics for superior performance and efficiency – it's a high pressure pump that can be relied on.
The BM55H 1.5" is a pump for fire fighting, tank filling, water transfer, irrigation and spraying. The super high head capability makes it a versatile pump for moving water around the farm, forestry block, lifestyle block or horticultural property.
Suitable for pumping clean non-aggressive liquids without solids or fibres in suspension.
Fluid Water
Maximum water temperature 55°C
Minimum water temperature 1°C
Maximum ambient temperature 40°C
Maximum casing pressure 1300kPa
*For liquids outside of this range please consult your local Honda Dealer for product suitability. Engine performance greatly reduced with increased ambient temperature and/or altitude, for more information talk to your local Honda Dealer.
SPECS
|
Product Code |
B55H |
|
Engine |
GX160 |
|
Nominal (hp) |
5.5 max gross |
|
Max Pumping/min (lt) |
680 |
|
Displacement (cc) |
163 |
|
Oil Alert |
Yes |
|
Diameter |
1.5” |
|
Total Head (metre) |
63 |
|
Suction Head (metre) |
8 |
|
Continuous Duty |
3000rpm |
|
Fuel Tank Capacity |
3.1 litres |
|
Fuel |
Unleaded |
|
Fuel Consumption @ 3600 rpm |
1.4 litres/hour |
|
Recommended Oil Type |
10W/30 API SG |
|
Oil Capacity |
0.6 litres |
|
Weight approx. |
23.2 kg |
|
Inlet |
1½’’ BSP (male) |
|
Outlets |
2 x 1”, 1 x 1½” BSP (male) |
|
Dimensions (L x W x H ) (mm) |
530 x 440 x 550mm |
