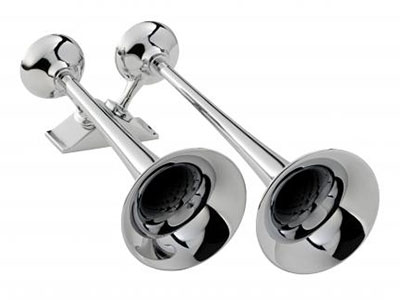

KAHLENBERG
Double Chrome Horn

Model K-380

The Kahlenberg K-380 Marine Air Horn is designed for boats between 25 and 45 feet in length. As with all Kahlenberg Air Horns for pleasure craft, the K-380 has been developed to maximize audibility, while producing a richness of tone based on musical instrument design.

FEATURES

  • Output exceeds electric horns of similar size
  • Made entirely of brass with bronze diaphragm
  • Despite its small size, the horn operates on pressures up to 150 psi for maximum dB output
  • Extremely low air consumption, allows for use of a very small compressor kit and very small air lines
  • Blast duration is nearly continous
  • Easy installation with optional P449-20 Compressor Kit and V-170-K Valve Kit
  • Additional requirements: breaker & toggle/helm switch

SPECIFICATIONS

Vessel length: Vessels < 20 m
Heated: No
Power:  Compressed air powered
Frequency: 385 and 462 Hz
SPL output: 123.5 dB (A) @ 1 m
Air consumption: 1.6 CFM
Operating pressure: 15 to 150 psi
Electric power: 12 Volt DC (compressor)
Material: Spun brass and cast brass
Net weight: 3.5 lbs
Finish: Kahlenberg chrome plate




SPARE PARTS

P449-20 COMPRESSOR KITV-170-K VALVE KIT
KAH K380 P44920 KAH K380 V170K 400
