VETUS

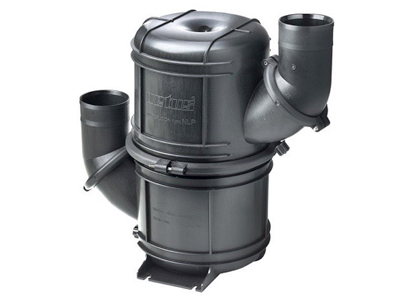

Waterlock
Type NLPHD
Made of NAVIDURIN® - a special temperature resistant (up to 260ºC ) composite - these heavy duty waterlocks offer thermal resistance to deformation under pressure. The NLP waterlock design is already known for its noise reduction features, versatile installation options and extremely low back pressure and this heavy duty version adds unique mechanical properties.
FEATURES
- Suitable for Ø 40 / 45 / 50 / 60 / 75 mm exhaust system
- 360º Rotating bodies and hose connections
- Comes with floor and bulkhead mounting brackets
- Weight: 1.5 kg
| Type | Capacity gal. (litre) | A inch (mm) | B inch (mm) | Ø (C) inch (mm) | Ø (D) inch (mm) |
|---|---|---|---|---|---|
| NLP40HD | 1.2 (4.5) | 15 5/32 (385) | 10 (254) | 6 1/2 (165) | 1 9/19 (40) |
| NLP45HD | 1.2 (4.5) | 15 5/32 (385) | 10 (254) | 6 1/2 (165) | 1 3/4 (45) |
| NLP50HD | 1.2 (4.5) | 15 5/32 (385) | 10 (254) | 6 1/2 (165) | 2 (51) |
| NLP60HD | 2.6 (10) | 20 9/32 (515) | 14 1/4 (362) | 8 17/64 (210) | 2 3/8 (60) |
| NLP75HD | 2.6 (10) | 20 9/32 (515) | 14 1/4 (362) | 8 17/64 (210) | 3 (76) |
