VETUS
Horizontal Waterlock
Type NLPH

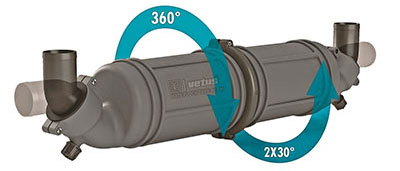

Horizontal two chamber waterlock/muffler with rotatable components and hose connections. Simple and time-saving installation for a wide range of appllications.
Suitable for 1 9/19”, 1 3/4”, 2”, 2 3/8”, 3” or 3 1/2” (40, 45, 51, 60, 76 or 90 mm) internal hose diameters
Please contact us for more information to find the best solution to your needs.

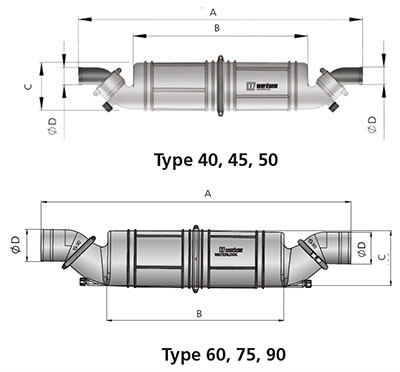

| Type | Capacity gal. (L) | A inch (mm) | B inch (mm) | C inch (mm) | Ø (D) inch (mm) |
|---|---|---|---|---|---|
| NLPH40 | 0.8 (3) | 25 43/64 (652) | 15 ¾(400) | 4 21/64 (110) | 1 9/19 (40) |
| NLPH45 | 0.8 (3) | 25 43/64 (652) | 15 ¾ (400) | 4 21/64 (110) | 1 ¾ (45) |
| NLPH50 | 0.8 (3) | 25 43/64 (652) | 15 ¾ (400) | 4 21/64 (110) | 2 (50) |
| NLPH60 | 2.6 (10) | 34 39/64 (879) | 19 11/16 (500) | 6 7/64 (155) | 2 3/8 (60) |
| NLPH75 | 2.6 (10) | 34 39/64 (879) | 19 11/16 (500) | 6 7/64 (155) | 3 (75) |
| NLPH90 | 2.6 (10) | 34 39/64 (879) | 19 11/16 (500) | 6 7/64 (155) | 3 ½ (90) |
