HANSEN

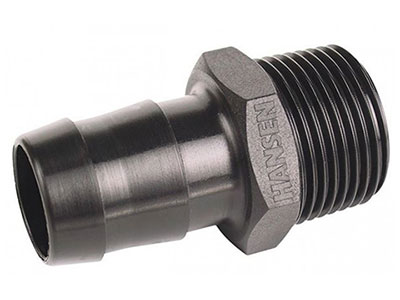

Male Hose Tail
SMHT
Used for connecting female threads to flexible pipe and hose, i.e. thin wall Irrigation tubing, suction and rubber hoses. Push on hose and use a hose clip to hold hose on.

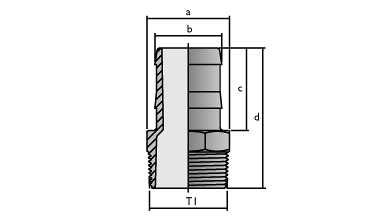

| Product Size: | Max. Press. @ 20°C | Dimensions | |||||
|---|---|---|---|---|---|---|---|
| T1 Metric (BSP) | T1 Imp. (BSP) | a (AF) mm | b mm | c mm | d mm | ||
| 6mm | 1/8" | 16 Bar | 11.0 | 7.6 | 22.8 | 39.3 | |
| 8mm | ¼" | 16 Bar | 13.9 | 9.5 | 23.6 | 44.5 | |
| 10mm | 3/8" | 16 Bar | 17.9 | 10.8 | 25.7 | 46.9 | |
| 15mm | ½" | 16 Bar | 22.0 | 14.0 | 29.8 | 54.8 | |
| 20mm | ¾" | 16 Bar | 28.0 | 21.6 | 33.5 | 61.4 | |
| 25mm | 1" | 16 Bar | 35.2 | 27.8 | 37.3 | 67.3 | |
| 32mm | 1¼" | 16 Bar | 43.2 | 33.6 | 42.8 | 75.8 | |
| 40mm | 1½" | 16 Bar | 50.2 | 40.8 | 50.2 | 85.2 | |
| 50mm | 2" | 16 Bar | 61.2 | 52.9 | 55.0 | 95.6 | |
| 80mm | 3" | 10 Bar | |||||
