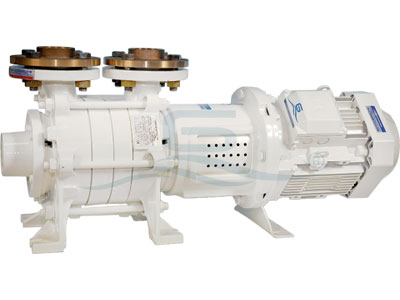

GIANNESCHI
ACM
SELF-PRIMING MULTI STAGE
FEATURES
- Excellent quality and craftsmanship
- High quality double mechanical seal
- Outstanding self-priming
- Shaft pump independently supported by double bearings
- Side channel and liquid ring construction
| Port Size: | From DN32 to DN65 |
|---|---|
| Pump casing: | Bronze |
| Impeller / Gear: | Bronze |
| Shaft: | Stainless steel |
| DC | AC - 50Hz | AC - 60Hz |
|---|---|---|
| 1 - 1.5 kW | 1.1 - 22 kW | 1.5 - 30 kW |
| 3 - 46 mwc | 3 - 120 mwc | 3 - 150 mwc |
| 3 - 13.8 m3/h | 3 - 42 m3/h | 3 - 47 m3/h |
