JABSCO

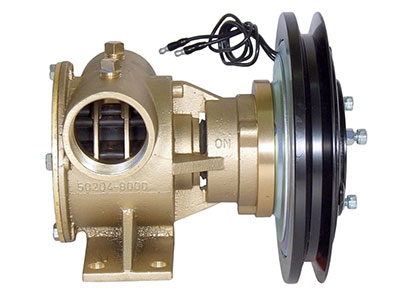

Bronze Pump Electro Magnetic Clutch
Series 50200
1½" bronze pump, 200-size, foot-mounted with BSP threaded ports, 2A or 1B pulley
FEATURES
- Heavy duty bilge and deck wash pump
- Bronze body, stainless steel shaft, mechanical shaft seal
- Neoprene impeller fitted as standard for maximum performance with clean or lightly contaminated water. Nitrile option for use with oily water
- Self-priming up to 3m vertical lift
- Can handle moderate amounts of suspended solid matter
| Connections | 1½” BSP internal threaded ports. |
|---|---|
| Dimensions | 200mm long, 180mm pulley diameter, 152mm across ports |
| Fuse Size | 5(amp) |
| Output | at 1500 rpm 195 litres/minute (43 gallons/min) at 3m total head |
