TRUDESIGN

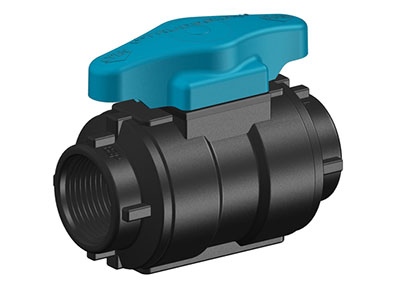

T-Handle Ball Valve

½" BSP to 2" BSP

Designed and made in New Zealand TRUDESIGN™ Certified Ball Valves are specifically designed for use in marine applications above and below the water line. They are ideal for controlling inlet and outlet water requirements. The T-Handle is suited to situations with limited space.

The body of the Ball Valve is manufactured in glass-reinforced nylon composite with high impact and tensile strength resulting in a light weight unit, free from corrosion and electrolysis issues. The ball and sealing rings utilise a PTFE polymer to ensure a smooth action, and continuous ease of operation over many years.

FEATURES

  • Manufactured from a glass-reinforced nylon composite - high strength and light weight
  • Immune to corrosion and electrolysis - long life with no concerns over decreased performance due to corrosion
  • Chemical resistant - impervious to diesel, petrol and antifouling paints
  • UV resistant - will not degrade or discolour with ultraviolet light from the sun
  • Large operating temperature range (-20° to +90°C)
  • High quality surface finish - will not discolour with green film as similar bronze fittings do
  • Approved by IMCI & Bureau Veritas to ISO standard 9093-2 when used with TruDesign Skin Fittings
  • Complies with ABYC H-27 standards when used in conjunction with the TruDesign ABYC collar and Skin Fittings (Thru Hulls)
