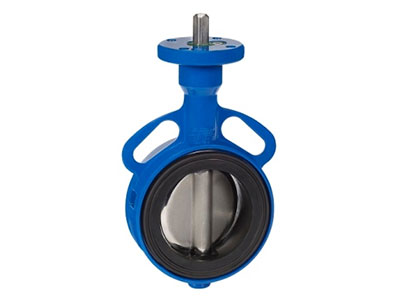

Econ^® lightweight aluminium butterfly valve, wafer type with centric disc, two piece shaft and rubber lined body. The rubber liner is replaceable and extends along the valve faces, eliminating the use of gaskets. The body with centering holes for easy pipe alignment is suitable for mounting between flanges according to DIN PN 6/10/16 and ASME 150#.

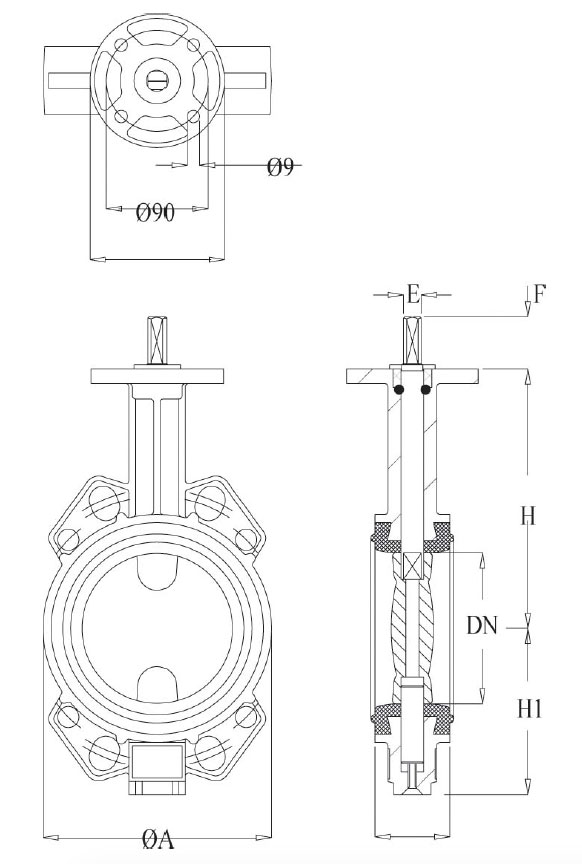

Face to face dimensions are according to ISO5752/EN558 basic series 20, API 609, DIN 3202 K1 and BS 5155. For easy mounting of both manual and automatic actuators the valve is executed with a topflange according the ISO 5211 standard. Furthermore, as a standard, this valve has a long neck for insulation, and the body is finished with an epoxy coating.

FEATURES
