TRIDENT
A2 Corrugated Fuel Fill & Diesel Transfer

#329

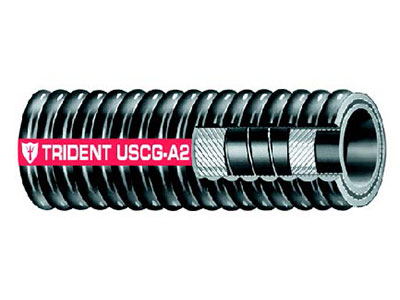

Trident Corrugated A2 Marine Fuel Hose (fill and vent plus diesel distribution) meets newest ABYC H-24 and H-33, SAE J1527, SAE J30R6, ISO 7840 A2, USCG Type A2; and is NMMA Type Accepted, CE Certified and Lloyds Approved, for all marine fuels including gasoline, alcohol blends, diesel and bio-diesel.

Built with thick wall, corrugated cover and wire helix between 2 ply reinforcement for extra service life and bend-ability. Formulated for maximum resistance to fuels, fire, heat, cold, ozone, aging and permeation.

SPECIFICATIONS

  • Construction: NBR tube with NBR/EPDM blend cover and high tenacity polyester 2 spiral, spring steel helix reinforcement
  • Temperature Range: -4°F to 212°F (-20ºC to 100ºC)
  • Sizes: 1½" to 2"; 38mm to 51mm
  • Colour: Black with red stripe
