TRIDENT
A2 Fuel Line & Fill Hose

#327/#328

Trident A2 Marine Fuel Hose (Fill and Vent plus Diesel Distribution) meets newest ABYC H-24 and H-33, SAE J1527, SAE J30R6, ISO 7840 A2, USCG Type A2; and is NMMA Type Accepted, CE Certified and Lloyds Approved, for all marine fuels including gasoline, alcohol blends, diesel and bio-diesel.

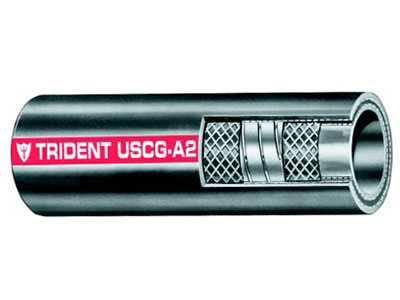

Built with thick wall, smooth cover and wire helix between 2 ply reinforcement for extra service life and bend-ability. Formulated for maximum resistance to fuels, fire, heat, cold, ozone, aging and permeation.

#328 Series is same as #327, but without wire helix.

SPECIFICATIONS

  • Construction: NBR tube, NBR/EPDM blend cover, with high tenacity polyester 2 spiral, spring steel helix
  • Temperature Range: -4°F to 212°F (-20ºC to 100ºC)
  • Sizes: 3/4" to 2 3/8"; 19mm to 60mm
  • Colour: Black w/Red Stripe
