TRIDENT
Barrier Lined B1-15 Low Perm Fuel Line
#305
Fuel Supply Line for Outboard Engines. Trident Barrier Lined B1-15 Low Perm Fuel Line for both gasoline (including ethanol blends up to E85) and diesel (including bio-diesel blends up to 100%).
The #305 series exceeds ABYC H-24, SAE J1527, ISO 8469 B1, USCG Type; EPA Certified and CARB Executive Order for low permeation; and is NMMA Type Accepted & CE certified.
This hose is built with the best fuel and age resistant formulations and a unique “Barrier Liner” on inside surface of the tube, so fuel is not in direct contact with rubber. This greatly reduces fuel permeation and prevents ethanol degradation of the rubber tube, which can cause small pieces of rubber to reach and damage the engine. Provides extraordinary resistance to fuel permeation, aging, heat, cold, and ozone. It also provides excellent rope-like bendability and fitting retention.
SPECIFICATIONS

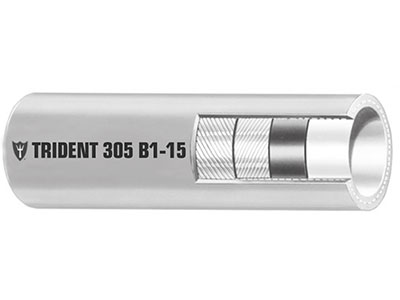

- Construction: Fluoroplastic internal barrier with gray CPE rubber outer, and 2-spiral polyester ply reinforcement
- Temperature Range: -20°F to 212°F (-28ºC to 100ºC)
- Sizes: 1/4" to 3/8", 6.3mm to 9.5mm
- Colour: Gray with black letters
