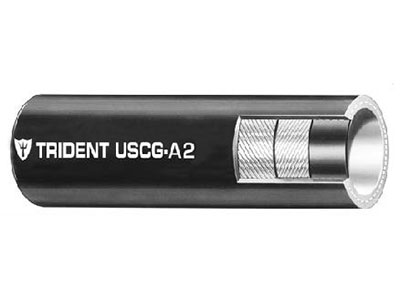

TRIDENT
Marine Fuel & Vent Hose A2

#317

Trident new type A2 Marine Fuel Hose (for vent and diesel distribution) for all marine fuels including gasoline, alcohol blends, diesel and bio-diesel.

The #317 series exceeds ABYC H-24 & H-33, SAE J1527, ISO 7840, & USCG Type A2; and is NMMA Type Accepted & CE certified.

Built with 2 spiral reinforcements and formulated for Max A2 resistance to fuels, fire, heat, cold, ozone, aging and permeation.

SPECIFICATIONS

  • Construction: NBR tube with NBR/PVC blend cover and polyester 2 spiral reinforcement
  • Temperature Range: -20°F to 212°F (-28ºC to 100ºC)
  • Size: 5/8", 16mm
  • Colours: Black with white letters
