HANSEN

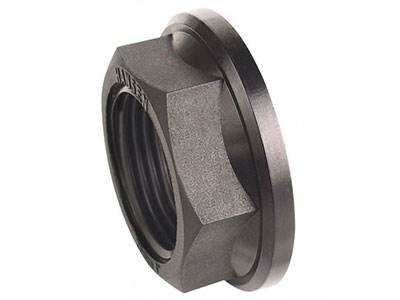

Back Nut
SBN
An accessory nut designed to fit tank fittings and thru hull fittings.
FEATURES
- Heavy duty tapered threads gives a strong reliable seal.
- UV stablized high quality glass fibre reinforced nylon giving all weather, fungi and bacterial resistance.
- New Zealand made.

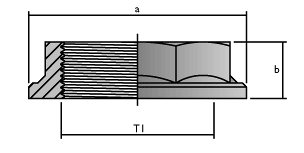

| Product Size | Max.Press. @ 20°C | Dimensions | ||
|---|---|---|---|---|
| Metric (BSP) | Imp. (BSP) | a (mm) | b (mm) | |
| 15mm | 1/2" | 16 Bar | 38.9 | 17.0 |
| 20mm | 3/4" | 16 Bar | 45.8 | 18.0 |
| 25mm | 1" | 16 Bar | 54.9 | 19.0 |
| 32mm | 1 1/4" | 16 Bar | 65.0 | 20.0 |
| 40mm | 1 1/2" | 16 Bar | 73.2 | 21.0 |
| 50mm | 2" | 16 Bar | 86.0 | 22.0 |
