HANSEN

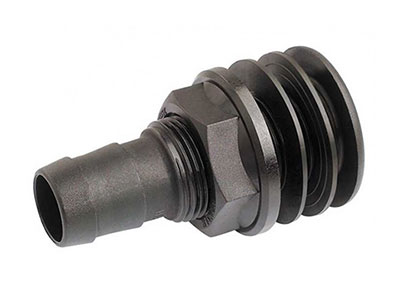

Thruhull Hosetail
STF
Used for connecting Low Density Polythene Pipe LDPE (to NZS 7601) flexible pipe and hose, ie. thin wall irrigation tubing, suction and rubber hoses. Push on hose and use a hose clip to hold hose on. Used in tanks and through hulls on boats. Available in black or white.

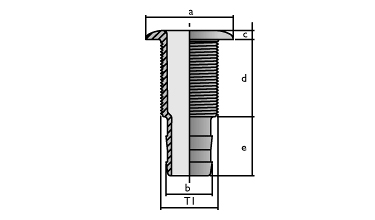

| Product Size: | Max. Press. @ 20°C | Dimensions | |||||
|---|---|---|---|---|---|---|---|
| Metric (BSP) | Imp. (BSP) | a (mm) | b (mm) | c (mm) | d (mm) | e (mm) | |
| 15mm | ½" | 16 Bar | 38.6 | 13.9 | 5.5 | 55.0 | 31.0 |
| 20mm | ¾" | 16 Bar | 45.1 | 21.5 | 6.2 | 55.0 | 35.0 |
| 25mm | 1" | 16 Bar | 54.1 | 27.7 | 6.5 | 55.0 | 38.0 |
| 32mm | 1 ¼" | 16 Bar | 64.1 | 33.6 | 7.2 | 55.0 | 43.0 |
| 40mm | 1 ½" | 16 Bar | 72.0 | 40.6 | 8.2 | 55.0 | 51.0 |
| 50mm | 2" | 16 Bar | 84.6 | 52.6 | 8.2 | 55.0 | 55.0 |
