HANSEN

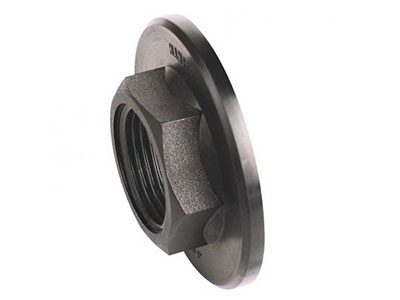

Back Nut Large
SBNL
An accessory nut designed to fit tank fittings and thru hull fittings.
FEATURES
- Heavy duty tapered threads gives a strong reliable seal.
- UV stablized high quality glass fibre reinforced nylon giving all weather, fungi and bacterial resistance.
- New Zealand made.

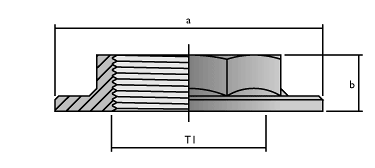

| Product Size: | Max. Press. @ 20°C | Dimensions | |||||
|---|---|---|---|---|---|---|---|
| Metric (BSP) | Imp. (BSP) | T1 / BPSF | a (mm) | b (mm) | |||
| 15mm | ½" | 16 Bar | ½” (15mm) | 38.9 | 17.0 | ||
| 20mm | ¾" | 16 Bar | ¾” (20mm) | 45.8 | 18.0 | ||
| 25mm | 1" | 16 Bar | 1” (25mm) | 54.9 | 19.0 | ||
| 32mm | 1 ¼" | 16 Bar | 1 ¼” (32mm) | 65.0 | 20.0 | ||
| 40mm | 1 ½" | 16 Bar | 1 ½” (40mm) | 73.2 | 21.0 | ||
| 50mm | 2" | 16 Bar | 2” (50mm) | 86.0 | 22.0 | ||
