HANSEN
Nut & Hose Tail
SNT
Used for a quick and easy connection for a variety of hoses to taps and pumps.
- Manufactured from the best materials available. Nuts and hose tails highest quality glass fibre reinforced nylon. Washer thermoplastic rubber.
- Manufactured from a raw material suitable for use with potable (drinkable) water.
- Material temperature range; Without load maximum 150°C. Short term without load, maximum 200°C. Melts at 215°C.

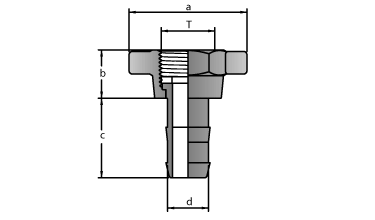

| Product Size: | Max. Press. @ 20°C | Dimensions | |||||
|---|---|---|---|---|---|---|---|
| Metric (BSP) | Imp. (BSP) | T BSPT | a (AF) (mm) | b (mm) | c (mm) | d (mm) | |
| 15mm x 15mm | ½" x ½" | 10 Bar | |||||
| 20mm x 15mm | ¾" x ½" | 10 Bar | ¾” (20mm) | 55 | 23 | 32 | 15 |
| 20mm x 20mm | ¾" x ¾" | 10 Bar | ¾” (20mm) | 55 | 23 | 36 | 20 |
| 25mm x 15mm | 1" x ½" | 10 Bar | 1” (15mm) | 64 | 25 | 32 | 15 |
| 25mm x 20mm | 1" x ¾" | 10 Bar | 1” (20mm) | 64 | 25 | 37 | 20 |
| 25mm x 25mm | 1" x 1" | 10 Bar | 1” (10mm) | 64 | 25 | 41 | 25 |
| 32mm x 32mm | 1¼" x 1¼" | 10 Bar | 1¼” (32mm) | 76 | 27 | 47 | 32 |
| 40mm x 40mm | 1½" x 1½" | 10 Bar | 1½” (32mm) | 82 | 30 | 55 | 40 |
| 50mm x 50mm | 2" x 2" | 10 Bar | 2” (40mm) | 97 | 33 | 60 | 50 |
| 80mm x 80mm | 3" x 3 " | 10 Bar | |||||
