VETUS
Hydrophor
Type HF

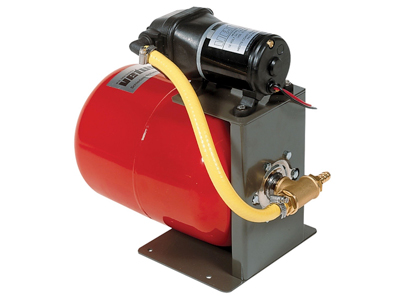

The HF pressurised water system has a rubber diaphragm inside, which prevents the pump motor being started each time a supply of water is required. The diaphragm is suitable for drinking water and can be replaced. This system ensures a constant water flow, saving of energy and minimum noise. Meets the EMC requirements.

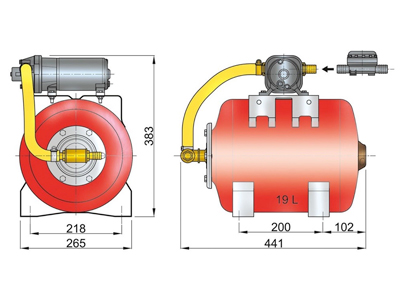

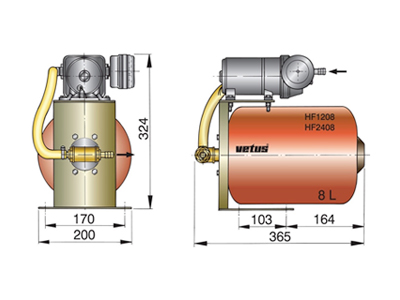

| Water system | Type HF1208 - HF2408 | Type HF1219 - HF2419 |
|---|---|---|
| Tank capacity | 8 litres | 19 litres |
| Electric motor | 12 V (3.9 A) / 24 V (2.0 A) | 12 V (6 A) / 24 V (2.5 A) |
| Hose connection | Ø 13 mm | Ø 19 mm |
| Weight | 6.2 kg | 7.5 kg |
| Capacity at 30psi | 12.5 l/min. | 17 l/min. |
| Max. pressure | 2.5 bar (35 psi) | 2.8 bar (39 psi) |
| Max. suction height | 3 m | 3 m |
