JABSCO

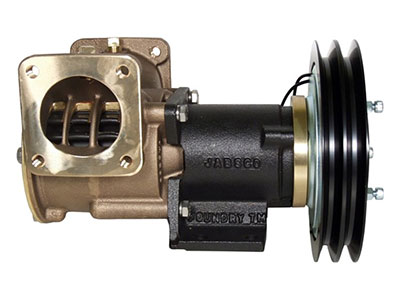

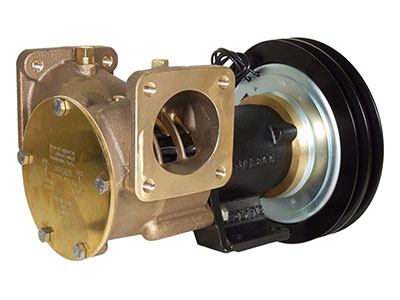

Bronze Pump Electro Magnetic Clutch
Series 50270F
2" bronze pump, 270-size, foot mounted with flanged ports, 2A or 1B pulley
FEATURES
- Heavy duty bilge and deck wash pump
- Bronze body, stainless steel shaft, mechanical shaft seal
- Neoprene impeller fitted as standard for maximum performance with clean or lightly contaminated water. Nitrile option for use with oily water
- Self-priming up to 3m vertical lift
- BSP threaded port adapters available
| Connections | 2” nominal bore flanged ports with 2” BSP counter flanges |
|---|---|
| Dimensions | 270mm long, 180mm pulley diameter, 173mm across ports |
| Fuse Size | 5 (amp) |
| Output | at 1500 rpm 267 litres/minute (59 galls/min) at 3m total head |
