HANSEN
Nut & Tail Elbow
SNTE
Used for a quick and easy connection for a variety of hoses to taps and pumps. The Hansen Nut and Tail elbow is ideal for any situation where a reliable threaded connection is necessary.

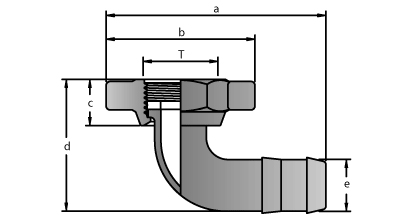

| Product Size: (T) | Max. Press. @ 20°C | Dimensions | |||||
|---|---|---|---|---|---|---|---|
| Metric (BSP) | Imp. (BSP) | a (mm) | b (mm) | c (mm) | d (mm) | e (mm) | |
| 20mm | 3/4" | 16 Bar | 82 | 55 | 17 | 49 | 20 |
| 25mm | 1" | 16 Bar | 96 | 64 | 22 | 63 | 25 |
(All threads are tapered)
